Choosing the Right Projection Screen
1. White Screens (Gain 1 or Higher)
White screens are a popular choice due to their color neutrality and affordable price.
Pros & Cons
- Uniform Reflectivity: They reflect light evenly in all directions, ensuring uniform brightness across the entire screen surface.
- Color Neutrality: These screens do not affect the image's color or white balance, ensuring accurate color reproduction without requiring additional projector calibration.
- Affordability & Durability: White screens are generally more affordable and durable. They can also be easily cleaned without damaging the fabric.
- Viewing Angle: They offer a wide viewing angle, making installation easier without restrictions on seating positions.
- Available in Various Formats: Motorized retractable ceiling/wall, fixed-frame, motorized floor-rising and fast-fold models for outdoor use.
- Compatibility: Suitable for almost all projectors, including UST, short-throw, standard-throw, and long-throw models, regardless of technology (DLP, LCD, LCOS, etc.) or light source type (RGB laser, laser phosphor, lamp-based, etc.).
- Cost: They offer a cost-effective solution without compromising performance.
To learn more about our products-Valerion click here
2. Ambient Light Rejecting (ALR) Screens
ALR screens are designed to enhance image contrast and color performance in environments with ambient light or strong reflections from white walls in a typical living room.
Pros & Cons
- Material Composition: Made of specialized gray PVC with a smooth surface, ideal for high-resolution content such as 4K or higher.
- Gain Factor: Typically below 1 (usually around 0.5-0.6), which enhances perceived contrast and helps reduce reflections from side walls but reduces the overall projector brightness by 40-50%.
- ANSI Contrast Enhancement: Increases ANSI contrast by preventing light from bright areas of the image from spilling into dark areas, preserving black levels.
- Ambient Light Rejection: Effectively reduces the impact of ambient light or reflections from side walls (up to 50%), maintaining a significant portion of the contrast and color accuracy in a typical living room with white walls.
- Color Accuracy: May not be fully color-neutral and often requires white balance adjustments on the projector for accurate grayscale temperature.
- Available in Various Formats: Motorized retractable ceiling/wall, fixed-frame and motorized floor-rising models.
- Viewing Angle: Offers a narrower viewing angle compared to white screens, which can affect off-center viewers.
- Compatibility: Requires a standard to long throw projector with a throw ratio greater than 1.4 – 1.5 to prevent hot-spotting (where the center of the screen appears brighter than the sides).
- Cost: They are quite expensive and can be found in ceiling-mounted electric, electric floor-rising, and fixed-frame designs.
3. Fresnel ALR Screens
Fresnel ALR screens use advanced layered technology for superior performance. These screens represent some of the most technologically advanced innovations in the projector screen industry.
Pros & Cons
- Layered Construction: The Fresnel fabric consists of multiple layers (often up to eight), each designed to improve specific aspects of image quality, contributing uniquely to the final result.
- Fixed Frame Design: Available only as a fixed-frame screen, no retractable or motorized versions exist as the fabric is quite thick.
- Protective Coating: Features a transparent protective film layer that allows for easy cleaning and prevents damage.
- High Gain: Typically has a gain above 1.5, increasing overall image brightness.
- Contrast Improvement: Despite the high gain, it maintains good black levels and enhances overall contrast.
- Viewing Angle: Extremely limited viewing angles, which restrict optimal seating positions.
- Ambient Light Rejection: More effective than standard ALR screens, rejecting up to 90% of ambient light or side wall reflections. That means it is the best solution for daylight viewing.
- Compatibility: Suitable for standard-throw, and long-throw models, regardless of technology (DLP, LCD, LCOS, etc.) or light source type (RGB laser, laser phosphor, lamp-based, etc.). There is a special version of UST Fresnel screen for UST projectors.
- Precise Installation Required: Projector placement must be exact to avoid issues like uneven brightness or hot-spotting.
4. Lenticular ALR UST Screens
Lenticular UST (Ultra Short Throw) screens are specifically designed for ultra-short throw projectors, offering superior light control and contrast enhancement. These screens use a microstructured surface to direct projected light toward the viewer while rejecting ambient light from other angles.
Pros & Cons
- Directional Light Control: Uses a specialized lenticular structure that reflects light from UST projectors efficiently while rejecting overhead and side ambient light.
- Optimized for UST Projectors: Unlike traditional ALR screens, lenticular UST screens are designed to control the extreme light throw angle of UST projectors, ensuring that the final image is projected toward the viewer’s eyes instead of the ceiling.
- High Contrast Performance: Enhances black levels and improves contrast in well-lit environments, making it ideal for living rooms or spaces with uncontrolled lighting.
- Ambient Light Rejection: Superior rejection of ceiling and window/side light (up to 95%!), preventing washed-out images in bright conditions.
- Available in Various Formats: Motorized retractable ceiling/wall, fixed-frame, and motorized floor-rising models.
- Wide Viewing Angle: Offers a wider viewing angle compared to Fresnel and traditional ALR screens, ensuring more consistent image quality from different seating positions.
- Higher Cost: These screens are among the most expensive projection screens due to their specialized design and material composition.
Screen Size and Formats

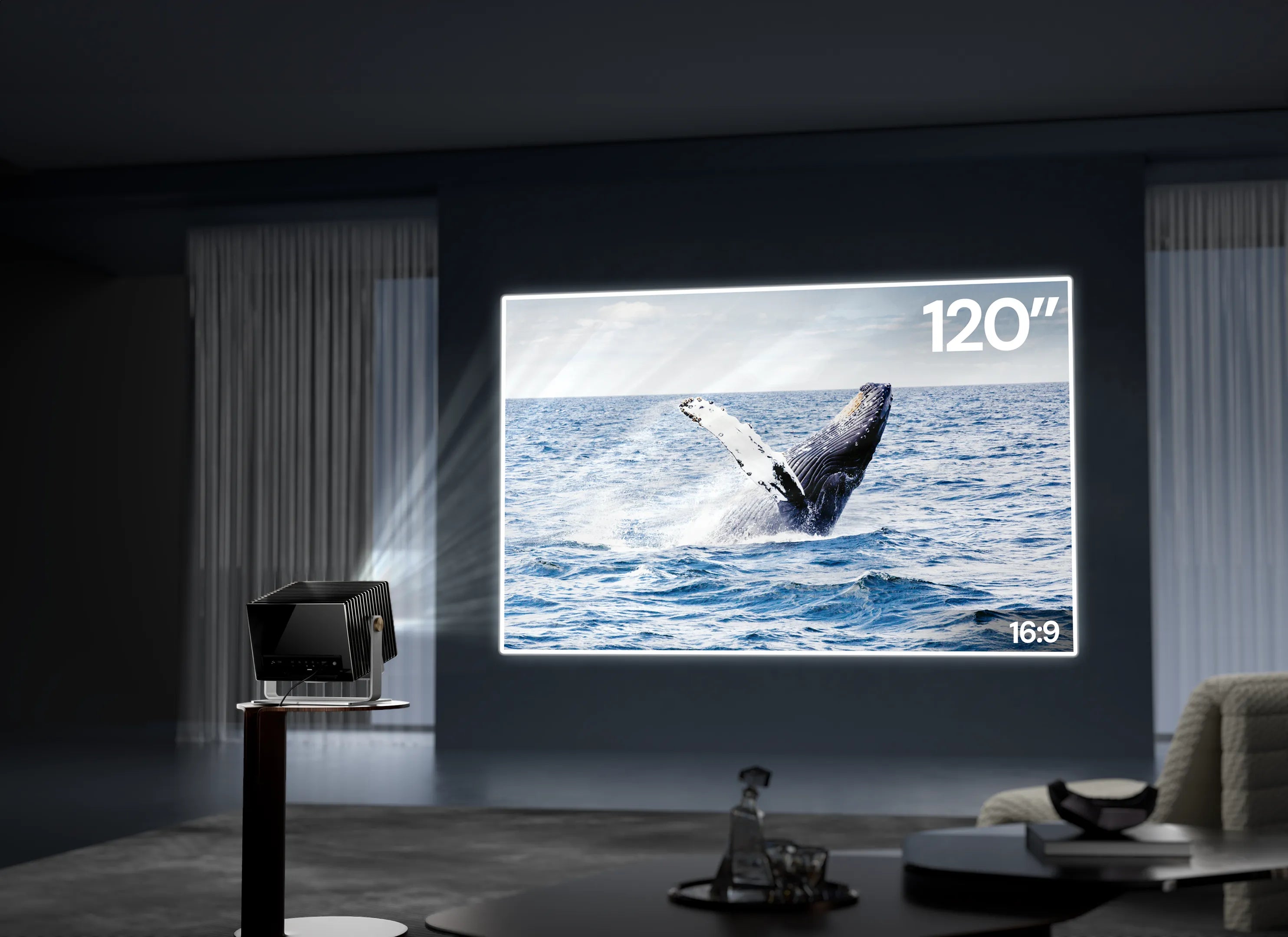

- Screen Size: Projection screens are measured diagonally and typically range from 80 to 150 inches. Larger special screens are also available for dedicated home theaters or professional setups. A 120-inch screen is often recommended for home use as it provides an immersive experience without overwhelming the room. Screens beyond 132 inches feature a seam in the fabric, which may be slightly visible during viewing. This is because a single, seamless fabric is not available as a raw material in such large sizes.
- Aspect Ratio: The most common ratio is 16:9, ideal for HDTV and compatible with most modern projectors. Wider formats like 2.35:1 (Cinemascope) exist but are less common. Also, 1:1 or 4:3 screens are available for specific requirements. Your choice should depend on the primary type of content you plan to watch.
Optimal Viewing Distance and height
Determining the right viewing distance is essential for an immersive and comfortable experience. Guidelines include:
- General Rule: The screen should cover around 30 degrees of your field of vision. This translates to sitting at a distance of approximately 1.6 times the screen diagonal. For a 100-inch screen, the optimal distance is about 4 meters.
- THX Recommendations: THX suggests a 40-degree viewing angle for a more cinematic experience, meaning the ideal distance is about 1.2 times the screen diagonal. For a 100-inch screen, this would be around 2.5 meters.
- Resolution Considerations: Higher resolution (e.g., 4K) allows you to sit closer without seeing individual pixels, enhancing immersion.
- Screen Height: The best position for a screen is when your head, while sitting relaxed on the couch and watching a movie, is within the lower third of the screen's total height.
Types of Projection Screens
Fixed Frame Projection Screens
Fixed-frame screens provide the best possible image quality due to their (tensioned) design, making them a popular choice for home theaters and dedicated projection rooms.
✔ Perfectly Flat Surface – The fabric is stretched tightly, ensuring a completely smooth projection surface without wrinkles or waves.
✔ No Moving Parts – Since it has no motors or mechanical parts, there are no risks of wear and tear over time.
✔ No Power Required – Unlike electric screens, it does not need an electrical connection.
✔ Best for High-Tech Fabrics – Most technologically advanced ALR, Fresnel or acoustically transparent fabrics, are only available in fixed-frame designs.
Considerations:
- Not Retractable – The screen is always visible; it cannot be hidden when not in use.
- Assembly Required – Installing a fixed-frame screen can take time, and some models require careful fabric tensioning.
- Wall Space Needed – Since the screen remains permanently mounted, you must have enough free wall space.
Electric Projection Screens
Electric projection screens offer convenience and flexibility, making them ideal for home theaters, offices, and multi-purpose rooms.
✔ Space-Saving & Aesthetic – Can be retracted into a ceiling or wall-mounted casing, keeping the screen out of sight when not in use.
✔ Motorized & Automated – Operated via remote control, wall switch, or smart home automation. Some models work with Alexa/Google Assistant or a 12V trigger.
✔ Flexible Installation – Can be installed in front of windows, bookshelves, or doors, maximizing room usability.
✔ Variety of Fabrics – Available in matte white gain ~1, ALR, gray high contrast, lenticular and high gain (<1) options.
✔ Tab-Tensioned Screens Available – These ensure a perfectly flat fabric surface.
Considerations:
- More Expensive – Electric screens usually cost more than fixed-frame models due to construction complexity.
- Requires Power & Wiring – Needs a power source, and some models, like in-ceiling versions, require professional installation.
- Potential for Wrinkles – Non-tensioned screens may develop slight waves over time.
- Motor Noise – Low-quality models may have noisy motors.
Tips
- Reducing Laser Speckle: To minimize the laser speckle phenomenon on RGB laser projectors, choose a screen fabric with the roughest surface texture or sound-perforated fabrics.
- Enhancing Contrast Perception: Adding an LED strip behind a fixed-frame screen and using it while watching a movie can enhance the perceived contrast.
- Flattening Screen Waves: If waves appear on a ceiling-mounted electric screen, leave it pulled down for 2-3 days to help the fabric regain its flatness.
Final Thoughts
Understanding the advantages and limitations of each screen type helps you select the best option for your viewing environment, projector, and budget.
✔ If you want the best image quality, go for a fixed-frame screen.
✔ If you need a hidden and flexible solution, an electric screen is ideal.
✔ If your room has ambient light, consider an ALR or Fresnel screen (Lenticular or Fresnel screen for UST projectors).
By making an informed choice, you can maximize your viewing experience and get the most out of your projector!
